DIY Electric Water Heater Install: Wiring and PVC Pipes Done Right

You bought the heater, now you’re staring at the wires and pipes wondering where to start without burning the house down or causing a flood.

We will cover securing the tank, running safe PVC drain lines, wiring with the proper gauge, and dialing in the thermostat.

I’ve wired hundreds of these on service calls. The takeaway: skip the guesswork on wire size or your breaker will trip every time you need a hot shower.

Is This a Job for You? The DIY vs. Pro Verdict

This project gets a solid 7 out of 10 for difficulty. You’re combining two skilled trades into one job.

The line is clear: connecting the PVC water pipes is well within a confident DIYer’s reach, but the electrical work is a different story. Splicing wires into your home’s electrical panel and ensuring the circuit is correctly sized and protected is a job for a licensed electrician in almost all cases.

Getting the wiring wrong has severe consequences. An undersized wire can overheat, causing a fire inside your walls. A bad connection can lead to electrocution. A faulty plumbing joint can flood your home, causing thousands in water damage. Mistakes can also void the manufacturer’s warranty on your brand-new heater.

Many local building codes legally require a licensed professional to perform and permit the electrical hookup. Call your local building department before you touch a single wire. It’s not worth the risk.

What You Need Before You Start: Tools and Parts

Running back and forth to the hardware store mid-job is frustrating. Get everything on this list first, and you’ll save yourself hours of headache.

Tools You Must Have

• Pipe wrenches (two are ideal, one to hold, one to turn)
• PVC pipe cutter or a hacksaw with a fine-tooth blade
• PVC primer and cement
• A non-contact voltage tester
• A multimeter
• A 4-foot level
• A garden hose (for draining the old unit)
• A bucket or small pump
• A drill and bits (for strapping if needed)
• Screwdrivers (flathead and Phillips)
• Wire strippers/cutters
• Channel-lock pliers
• Tape measure
• Safety glasses and work gloves

Parts and Materials Checklist

• The new electric water heater (ensure voltage and amperage match your home’s circuit)
• Schedule 40 or 80 PVC pipe (measure for hot and cold lines)
• PVC fittings: couplings, 90-degree elbows, male adapters
• New Temperature & Pressure (T&P) Relief Valve (often not included)
• PTFE thread seal tape or pipe dope for all threaded connections
• Dielectric unions or approved connectors to join pipes to the heater’s brass nipples
• Correct gauge wire (e.g., 10-gauge for a 30-amp 240-volt circuit) and conduit if required
• Wire nuts (the proper size for your wire gauge)
• Circuit breaker (matched to your heater’s specs, installed by electrician)
• Strap kits to secure the heater to the wall (for seismic zones)
• Drain pan (if the heater is located inside and not in a drain)

For a typical 50-gallon electric unit, the heater and parts might cost you $600-$900. A full professional installation often runs $1,500 to $2,200. That price difference pays for the electrician’s expertise, their insurance, and your peace of mind knowing the job is permitted and safe. Also consider water heater installation operating costs to understand the full long-term expense. This includes energy use, standby losses, and routine maintenance over time.

The Golden Rules: Safety First, Always

This isn’t a suggestion. It’s the law of the land for this job. Ignoring these rules risks fire, flood, or electrocution. We do this right, or we don’t do it at all.

Step 1: Turn off the circuit breaker at the main panel and VERIFY with a voltage tester.

Find the correct double-pole breaker in your main panel labeled for the water heater and flip it to OFF. Here is the critical part most people skip.

You must verify the power is off with a non-contact voltage tester before you touch a single wire.

Go to the water heater. Remove the access panel on the side. Carefully insert the voltage tester near the wire connections on the top thermostat. If it beeps or lights up, the circuit is still live. Go back to the panel, find the right breaker, and try again. Only proceed when the tester is silent. This simple $15 tool prevents a fatal mistake.

Step 2: Turn off the cold water supply and drain the old tank completely.

Locate the cold water shut-off valve on the pipe feeding the top of the heater. Turn it clockwise until it stops. Now, you need to relieve the pressure and empty the tank.

1. Connect a standard garden hose to the drain valve at the bottom of the tank. Run the other end to a floor drain, utility sink, or outside.
2. Open a hot water faucet somewhere in the house, like a bathroom sink. This breaks the vacuum and lets the tank drain.
3. Slowly open the tank’s drain valve. Let it flow until it’s empty. If the water stops but the tank feels heavy, sediment has clogged the valve. You may need to briefly reopen the cold water supply to blast the sediment loose, then shut it off and drain again. Be ready for a mess.

A completely empty tank is much lighter and safer to disconnect and move. Residual water can spill when you disconnect pipes and make a huge slip hazard.

Electricity and Water Are a Deadly Mix. No Shortcuts.

Think of your wiring like the heating elements inside the tank. They are designed to be submerged in water, but only the water inside the sealed tank. The wires and connections in the junction box on top must stay perfectly dry.

This is why we drain the tank first and work carefully. A spill into that electrical compartment can cause a short circuit or allow current to travel up a water pipe. That’s how people get hurt. Take your time. Keep a rag handy to wipe up any drips immediately. If your work area is damp, dry it completely before reconnecting power.

Why You Should Never Transport or Install a Water Heater on Its Side

I see this all the time. Someone straps a new heater to a cart and lays it down to wheel it into the basement. This is a terrible idea for two reasons.

First, the sediment. All tanks have a layer of mineral sediment (calcium, lime) at the bottom. Tilting the tank stirs this up. When you stand it upright and fill it, that loose sediment can get sucked into the hot water outlet pipe or, worse, settle directly on the bottom heating element. It insulates the element, causing it to overheat and burn out prematurely.

Second, the internal parts. Some models have a glass liner or delicate dip tubes that can be damaged if the tank isn’t upright. You might not see the damage until it fails months later.

Always keep the water heater upright from the store to its final position. Rent an appliance dolly, get a friend, and move it vertically. Protect your investment from the start.

How Do I Install the New Electric Water Heater?

Removing the Old Unit and Placing the New One

Start by shutting off the power at the breaker panel. Tag the breaker so no one turns it back on. Then, close the cold water inlet valve on the old heater. Attach a garden hose to the drain valve at the bottom and run it to a floor drain or outside. Open the drain valve and a hot water faucet somewhere in the house to let air in. This will speed up draining.

Once the old tank is empty, disconnect the water lines and the electrical wiring at the junction box on top of the unit. The old heater will be heavy and awkward, so get a helper or use an appliance dolly to move it out carefully.

Before you even think about the new unit, clean the area. Sweep the floor and check for any old leaks or moisture. Now, get the new water heater in place. Many units need to be stood upright on their base. Slide it carefully into position, leaving enough room around it for future service.

Getting the Heater Perfectly Level

Do not skip this step. Grab a carpenter’s level. Place it on top of the tank, checking front-to-back and side-to-side. A heater that isn’t level puts stress on the internal components and can lead to premature failure. An unlevel heater can also cause sediment to collect unevenly, reducing efficiency and creating noise.

If the floor is uneven, use plastic or metal shims under the base to make it perfectly level. The floor itself must be solid and dry. Concrete basement floors are ideal. Installing on a wooden subfloor is fine, but if there’s any chance of a leak, place the unit inside a drain pan plumbed to a floor drain.

Installing the Temperature & Pressure (T&P) Relief Valve and Drain Line

Your new heater comes with a T&P valve, usually in the box. Find the opening for it on the side of the tank, near the top. Wrap the valve’s threads with Teflon tape, about three wraps clockwise. Screw it in by hand until snug, then give it another quarter-turn with a wrench. Do not over-tighten.

This valve is your last line of defense against a tank explosion. It must have a drain line. Use approved materials like CPVC or copper for the drain line, never PVC here, as the discharged water can be scalding hot. Run the pipe from the valve straight down to within 6 inches of the floor. Point the end toward the floor drain. The line must be unobstructed and never capped.

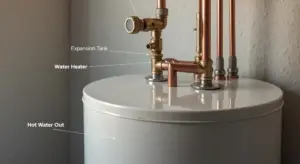

Connecting the Water Lines with PVC

For the cold water inlet (marked with a blue collar) and hot water outlet (red collar), you can use PVC if your local code allows it. Cut your PVC pipe to length. Dry-fit everything first. Make sure you have dielectric unions if you’re connecting to copper or galvanized pipes to prevent corrosion.

Here’s the process:

1. Clean the pipe ends and fitting sockets with PVC primer. It prepares the surface.
2. Apply a solid coat of PVC cement to the pipe end and a light coat inside the fitting.
3. Quickly push and twist the pipe into the fitting, holding it for 15 seconds to set.

Give the joints at least two hours to fully cure before you turn the water on. Connect the cold water line to the inlet and the hot water line to the outlet. Use two wrenches, one to hold the tank’s nipple and one to tighten the fitting, to avoid twisting the internal plumbing.

PVC for Drains vs. CPVC or PEX for Supply

You’ll see PVC used a lot, but knowing where to use it matters. PVC is strong, cheap, and perfect for cold, non-pressurized drain lines, like from your T&P valve pan or a water softener drain. For hot and cold supply lines under pressure, CPVC or PEX are generally better choices than standard PVC.

Standard PVC has a lower maximum temperature rating. While it might handle typical hot water, any temperature spike could weaken it. CPVC is specifically rated for higher temperatures and pressures found in hot water lines. PEX is flexible, resists freezing better, and is often easier for DIYers to install with simple crimp tools. Using the wrong material can void your heater’s warranty and create a real hazard. Following water heater safety guidelines helps prevent these risks and ensures you use the right materials and installation practices.

How Do I Wire an Electric Water Heater Correctly?

If you are not 100 percent confident working with electricity, stop and hire a licensed electrician. I have repaired water heaters where DIY wiring led to melted terminals and tripped breakers. Paying a pro is cheaper than a house fire.

Identify a 240-Volt System Versus a 120-Volt System

Your home electric water heater almost certainly needs 240 volts. Look at your circuit breaker panel. A 240-volt circuit uses a double-pole breaker. It is one switch that trips two adjacent breaker slots. A 120-volt circuit uses a single-pole breaker in just one slot. Knowing which breaker feeds the water heater makes maintenance safer. In the next steps, we’ll guide you through water heater breaker identification in your panel.

You can verify this with a multimeter. Set it to AC voltage. Test between the two hot wires (black and red). You should read about 240 volts. Testing from either hot wire to ground should read about 120 volts. Always test for voltage with a reliable meter before you touch any wires.

Know Your Wires: Black, Red, White, and Green

At the water heater’s junction box, you will find four wires. The colors have specific jobs.

• Black wire: This is one “hot” wire carrying 120 volts.
• Red wire: This is the other “hot” wire carrying 120 volts.
• White wire: This is the neutral wire. It completes the circuit back to the panel.
• Green or bare copper wire: This is the safety ground wire. It protects you from shock.

In a 240-volt heater, the two hot wires (black and red) power the heating elements. The white neutral may not connect to the heater elements directly, but you must still secure it in the junction box to meet electrical code. The ground wire is non-negotiable; it must be tightly connected to the green ground screw on the heater.

A Simple Process for Safe, Code-Compliant Connections

Follow these steps in order. Do not skip any.

1. Turn off the power at the main circuit breaker panel. Use a breaker lock or tape to prevent someone from turning it back on.
2. Confirm the power is off. Use your voltage tester on the wires at the heater. Test between black and red, and from each to ground. The meter must read zero.
3. Strip the wire ends. Use wire strippers to remove about 3/4 inch of insulation from the black, red, white, and ground wires.
4. Make the connections. On the water heater, you will see terminal screws labeled L1, L2, N, and GND. Connect the black wire to L1. Connect the red wire to L2. Connect the white wire to the N terminal. Connect the green or bare wire to the GND screw.
5. Tighten every screw firmly with a screwdriver. A loose connection will overheat. Give each wire a gentle tug to ensure it is secure.
6. Neatly place the wires into the junction box and screw the cover plate back on.

Do not restore power until you have visually inspected every connection and closed the junction box. When you flip the breaker back on, listen for any unusual sounds and check that the heater’s status light comes on.

With the wires connected, your next focus is the wire gauge. Choosing the right wire size is not a guess; it is a critical calculation based on your heater’s amperage and the circuit length.

What Is the Proper Wire Gauge for My Heater?

You match the wire size to the breaker size listed on your heater’s label. That’s your rule number one. I see this mistake on service calls all the time. Using wire that’s too thin is a major fire hazard.

For a quick reference, most standard 4500-watt, 240-volt heaters run on a 30-amp circuit breaker. For that, you use 10-gauge copper wire. A bigger 5500-watt model usually needs a 40-amp breaker and 8-gauge wire. These are the most common setups you’ll find in a home.

Wire gauge depends on two things: the amperage (how much current flows) and the distance from your electrical panel. Think of it like a garden hose. A longer hose needs to be wider to deliver the same amount of water without losing pressure. Electricity works the same way. A very long wire run may need a larger gauge to prevent a voltage drop that can damage the heating elements.

Always match the wire size to the circuit breaker size printed right on the heater’s label or in the manual. The manufacturer has already done the math for your specific model. If the label says “Max Circuit Ampacity: 30A,” you use 10-gauge wire on a 30-amp double-pole breaker. If it says 40A, you use 8-gauge. This is not a suggestion.

All this work follows the National Electrical Code (NEC). It’s the rulebook for safe electrical installations. Your local inspector uses it to approve work. When in doubt, the NEC and your heater’s label have the final say.

How Do I Use and Connect PVC Pipes for the Water Heater?

Let’s clear up a common point of confusion. You don’t use PVC for the main hot and cold water lines feeding the heater. That’s a code violation waiting to happen because PVC can’t handle the sustained high temperatures. For an electric water heater, PVC is almost exclusively used for one critical safety line: the Temperature and Pressure (T&P) Relief Valve drain.

This valve is your heater’s emergency safety device. If the internal temperature or pressure gets dangerously high, it opens to release hot water and steam. The PVC pipe directs that scalding discharge safely to the floor drain or outside. It must be the same size as the valve outlet (usually 3/4″), slope downward, and terminate where it won’t cause injury or damage.

Measuring, Cutting, and Solvent-Welding PVC

Working with PVC is straightforward if you follow the process. You’ll need a PVC pipe cutter or fine-tooth saw, primer, cement, and rags.

1. Measure and Dry Fit. Measure the needed length from the T&P valve to your drain point. Assemble all the pipes and fittings (elbows, couplings) together without glue to ensure your planned route works.
2. Mark and Cut. Mark your cut line on the pipe. Use your cutter or saw to make a square, clean cut. Deburr the inside and outside edges of the cut pipe with a utility knife or sandpaper.
3. Clean and Prime. Wipe dirt off the pipe end and fitting socket. Apply a liberal coat of purple PVC primer to both the pipe end and the inside of the fitting. This cleans and softens the plastic.
4. Apply Cement and Assemble. Immediately apply a thin, even coat of PVC cement over the primed areas on both pieces. Quickly push the pipe into the fitting with a slight twisting motion until it seats fully. Hold it firm for about 15 seconds to prevent push-out.
5. Wipe and Set. Wipe off any excess cement from the joint with a rag. Let the joint cure for at least 15 minutes before handling, and 2 hours before putting it under pressure.

A proper solvent-weld joint is stronger than the pipe itself, but rushing or skipping the primer is the number one reason for leaks. The primer is not optional; it’s what makes the chemical weld. In my own basement, I keep a dedicated can of clear primer and cement for these small jobs to avoid the mess of the purple stuff.

PVC vs. CPVC for Hot Water Lines

This is about temperature. Standard Schedule 40 PVC is rated for a maximum service temperature of 140°F. Your water heater’s thermostat is often set to 120°F for safety, but the tank can internally reach much higher temperatures, especially if the thermostat fails.

CPVC (Chlorinated Polyvinyl Chloride) is the cousin you use for domestic hot water lines. It’s cream or light tan colored and is rated for temperatures up to 200°F at 100 psi. For the actual hot water line coming out of your heater, CPVC or metal piping (copper, PEX-AL-PEX) is required by code. Never use standard PVC. Note that regular PVC is not designed to handle hot water.

FAQ: Is PEX OK for the T&P Drain Line?

No.

While PEX is fantastic for supply lines, it is not approved for use as a T&P relief valve discharge pipe. The reason is simple: the blast of 210°F water and steam from a relieving valve can easily exceed the temperature rating of standard PEX tubing, causing it to fail right when you need it most. PVC, CPVC, copper, or galvanized steel are the only code-approved materials for this critical safety drain. Don’t get creative here. Use the right pipe for the job. A properly functioning T&P relief valve relies on an unobstructed, properly routed discharge to relieve pressure safely. The discharge pipe must carry hot water and steam without degradation to keep the valve’s safety function intact.

How Do I Adjust the Electric Water Heater’s Temperature?

You adjust the thermostat for two main reasons: comfort and cost. If your shower suddenly turns icy or your dishwasher isn’t getting things clean, the water temperature is wrong. Setting the correct temperature prevents scalding and helps your water heater run efficiently, saving you money on your electric bill.

A lower setting of 120°F is recommended for most homes. This is hot enough for household tasks and significantly slows mineral buildup in your tank. The factory setting is often much higher, around 140°F. You’ll find the safe range printed on the unit’s label. Always defer to the manufacturer’s maximum, especially when considering temperature settings for safety and savings.

Step-by-Step Adjustment Guide

This is a simple job, but you are working with high voltage. Rushing causes shocks or fires. Follow these steps in order.

1. Kill the power completely at your home’s main circuit breaker panel. Do not rely on a wall switch. Flip the dedicated double-pole breaker for the water heater to OFF. Use a non-contact voltage tester on the wires at the heater to confirm they’re dead.
2. Remove the access panels. You’ll see one or two metal plates screwed onto the tank. The upper thermostat panel often hides behind the wire connection cover. Use a screwdriver.
3. Peel back the insulation carefully. You’ll see the thermostat with a dial. Adjust the dial to your desired setting, typically the “Hot” mark or 120°F. Do not touch any wires or terminal screws.
4. Replace the insulation neatly. Securely screw the metal access panel back on.
5. Restore power at the breaker panel.

Wait at least an hour for the tank to heat, then test the water temperature at a faucet farthest from the heater.

The Critical Detail: Two Thermostats

Most standard electric water heaters have two heating elements, each with its own thermostat. You must set both thermostats equally to the exact same temperature. If one is set higher, it can cause the lower element to never turn on, giving you only half a tank of hot water. For temperature safety, aim for a steady setting around 120°F (49°C) to prevent scalding and energy waste. Always turn off power at the breaker and follow the manufacturer’s instructions before making adjustments.

After adjusting the upper thermostat, re-secure its panel. Then, remove the lower access panel (often near the bottom of the tank) and repeat the adjustment process. Before closing the lower panel, press the red high-temperature limit reset button next to the thermostat. This ensures the safety cutoff is engaged.

In my old rental unit, the water would run lukewarm after 10 minutes. The lower thermostat was set 20 degrees cooler than the top one. Matching them fixed it immediately.

Fire It Up and Fix Common Problems

The Final Startup Sequence

Do not plug the heater in yet. You will ruin the elements. Follow these steps in order.

1. Fully open a hot water faucet, like a laundry tub or bathtub, on the top floor of your house.
2. Slowly open the cold water supply valve to the heater. You will hear air and water rushing into the tank and out the open faucet.
3. Let the faucet run until you have a solid, steady stream of water with no spitting or sputtering. This purges the air from the tank and your house lines.
4. Now, visually inspect every connection you made. Check the inlet and outlet at the heater, the T&P valve discharge pipe, and all PVC fittings. Look for drips or weeping water.
5. If you find a leak at a threaded connection, tighten it a quarter-turn more. If a PVC joint is leaking, you must drain the tank, cut out the bad joint, and re-glue it. There is no fixing a leaking glued joint.
6. Only after the tank is full and leak-free should you restore power at the breaker panel.

Troubleshoot No Hot Water

The heater is cold and silent. Start with the simplest fix and work toward the complex.

First, check your breaker panel. A tripped breaker is the most common cause. If it’s tripped, switch it fully off, then back on. If it trips again immediately, you have a wiring fault or a shorted element. Stop and call an electrician.

Next, reset the high-temperature cutoff. This is a red button behind the upper thermostat access panel. Press it firmly. If it clicks, you’ve reset it.

Finally, verify the thermostats are set. Using a non-contact voltage tester, check that power is reaching the unit. Then, with the power off, pop the access panels. Make sure both thermostats are dialed to a temperature, usually around 120°F, and not set to “OFF” or “VACATION.” A flipped vacation switch has fooled many a seasoned tech.

Troubleshoot Not Enough Hot Water

You get hot water, but it runs out too fast. This almost always points to one element not working.

The lower heating element does most of the heavy lifting, reheating the tank. If it fails, you only get the hot water stored in the top half of the tank. Here’s how to diagnose it.

1. Turn off the power at the breaker.
2. Remove the lower access panel and insulation.
3. Set a multimeter to measure resistance (ohms). You should get a reading between 10-16 ohms for a standard 4500-watt element. A reading of infinite resistance (OL) means the element is dead and must be replaced.
4. While you’re there, check the lower thermostat. With the power off, use your multimeter to check for continuity. No continuity means a bad thermostat.

A failed lower element is the single most common reason for a sudden, drastic loss of hot water capacity. Replacing it is a common repair, but you must fully drain the tank first.

Troubleshoot Leaks

Water on the floor means stop and find the source. The three most common spots are the inlet/outlet connections, the T&P valve, and the tank itself.

Inlet and outlet leaks are usually at the threaded nipples. Tighten them with two wrenches, one to hold the nipple on the tank. If it still leaks, you may need new pipe dope or Teflon tape.

The Temperature and Pressure (T&P) valve can leak from the discharge tube if it’s faulty or if your water pressure is too high. Test your house water pressure. If it’s over 80 PSI, you need a pressure reducing valve. If pressure is normal and it drips, replace the T&P valve.

A leak from the tank body itself is a terminal failure. Look for rust streaks or water seeping from a seam or weld. A leaking tank cannot be repaired; the entire water heater must be replaced.

When to Stop and Call a Pro

Know your limits. This keeps you safe and prevents costly mistakes.

Call a licensed professional if you see continuous water from the tank body, if a breaker trips repeatedly, or if you smell burning or see scorched wires. If you are not 100% confident in your electrical testing skills, stop. Incorrect wiring can cause a fire.

If after replacing an element or thermostat you still have no hot water, the issue could be with the control circuitry. At that point, the diagnostic equipment and experience of a technician will save you time, money, and frustration.

Quick Answers

Why can’t I use regular PVC for my hot water line?

Standard PVC has a maximum temperature rating too low for the potential heat inside a water heater tank. For the pressurized hot water line, you must use CPVC, copper, or PEX, which are code-approved for higher temperatures. Using PVC here is a safety hazard and will likely violate plumbing code.

My new heater is in. What’s the first thing I should check before turning the power on?

Absolutely verify the tank is 100% full of water. Open a hot faucet until water flows steadily with no air spurts. Then, do a visual inspection of every plumbing connection for leaks. Turning on the power to an empty tank will destroy the heating elements in minutes.

I followed the guide, but my water isn’t hot enough. What should I adjust first?

First, ensure you set *both* the upper and lower thermostats to the exact same temperature, around 120°F. If one is set lower, the elements won’t work together properly. Give the tank at least a full hour to heat up after making any adjustment before testing the water temperature.

Is it okay if my T&P valve drain line runs along the floor to the drain?

Yes, but it must have a continuous downward slope so any discharged water flows out completely and can’t back up. The end of the pipe must be left open, never capped, and should terminate within 6-12 inches of the floor drain so you can see if it discharges.

How often should I maintain my new electric water heater?

Once a year, flush a few gallons from the tank’s drain valve to remove sediment and test the T&P relief valve by lifting its lever briefly. This annual check takes 10 minutes and is the best thing you can do for efficiency and longevity. Always turn off the power before performing any maintenance.

Final Water Heater Checklist

Always start your installation by ensuring the water heater sits perfectly level and secure on a solid, non-combustible base. A proper foundation prevents stress on pipes and fittings, which is the number one cause of leaks down the road. Before you power it up, fill the tank completely and check every single connection while the pressure relief valve is open to purge all the air from the system.
